BMW ZF DOGBOX RACING GEARSET

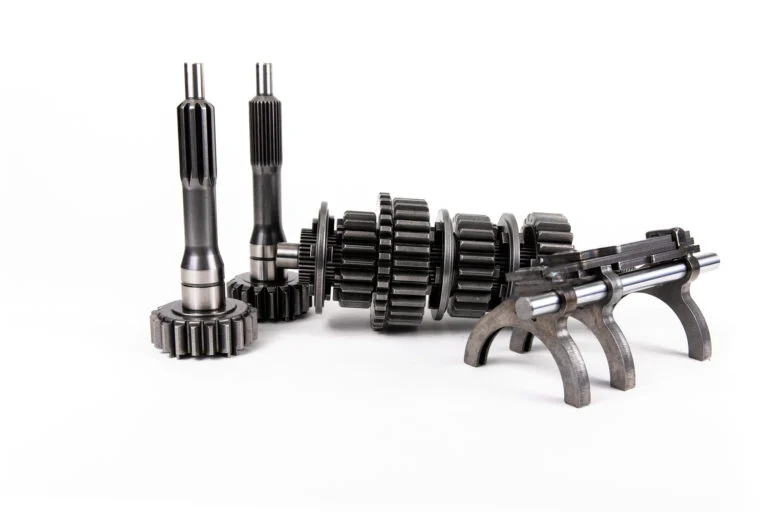

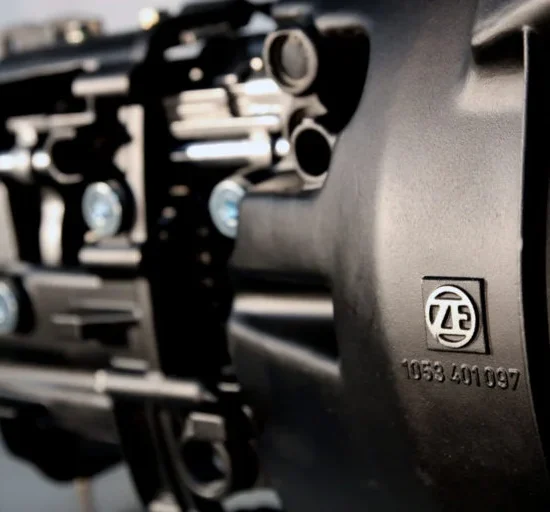

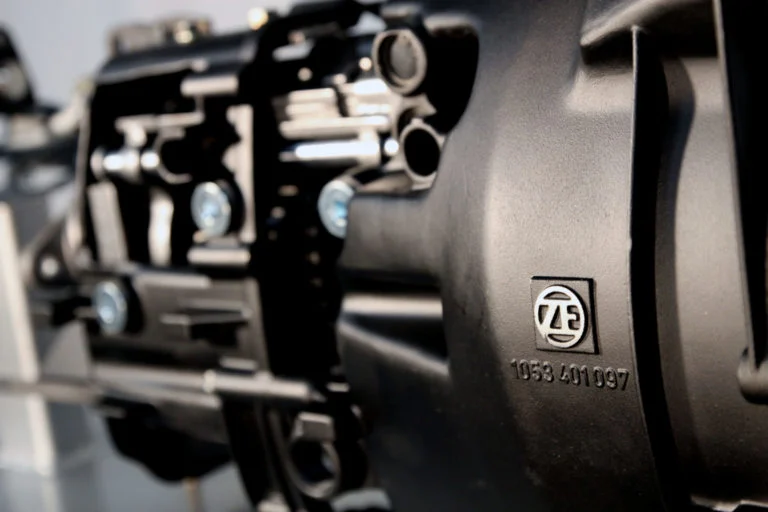

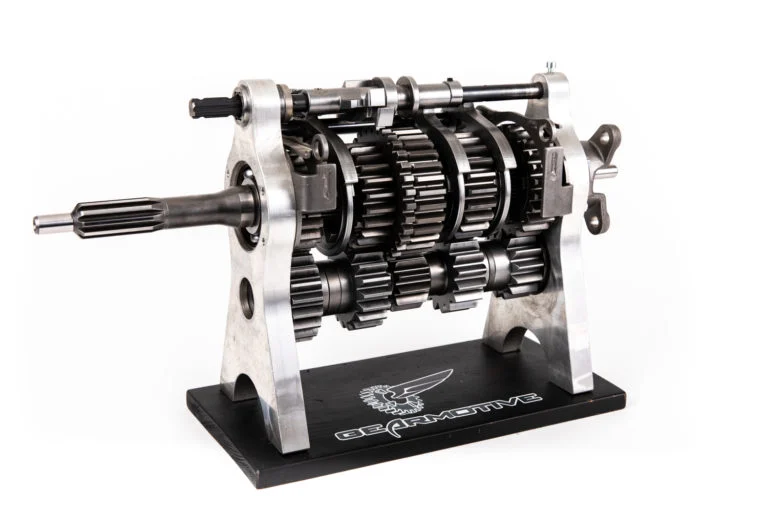

The GearMotive BMW ZF S5D dogbox gearset fits the relatively common ZF 5-speed gearbox as found in the E36 328i/M3 and many more. The gearset has a handful of special features built-in. Shifter mechanisms are completely rebuilt, to make them as robust and rigid as possible. Clutch shaft is stronger than original and can be built for other splines as well. This gearset can be fitted any many car models with aftermarket adapters or by bellhousing modifications.

This gearset is an H-pattern, dogleg first, dog-engagement set for the ultimate in manual H-pattern shifting.

BMW RACE TRANSMISSION
For high power vehicles (over 500hp), GearMotive offer heavy-duty HD model counter and input shafts. The HD model gearset has been tested up to 1100hp/1100Nm in drag and drift racing.

• 5 Speed Dogbox gearset
• Dogleg H shift pattern

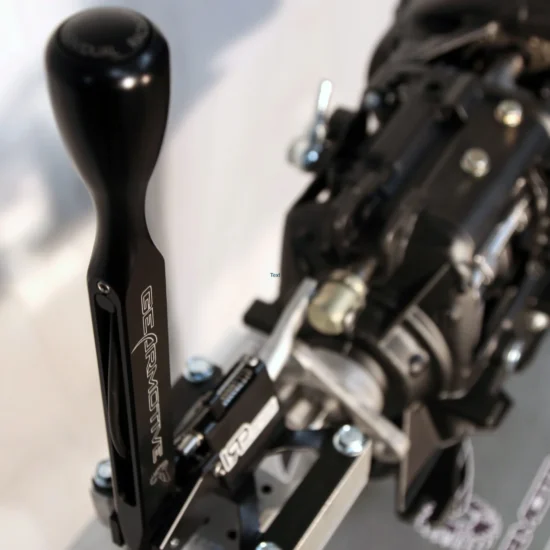

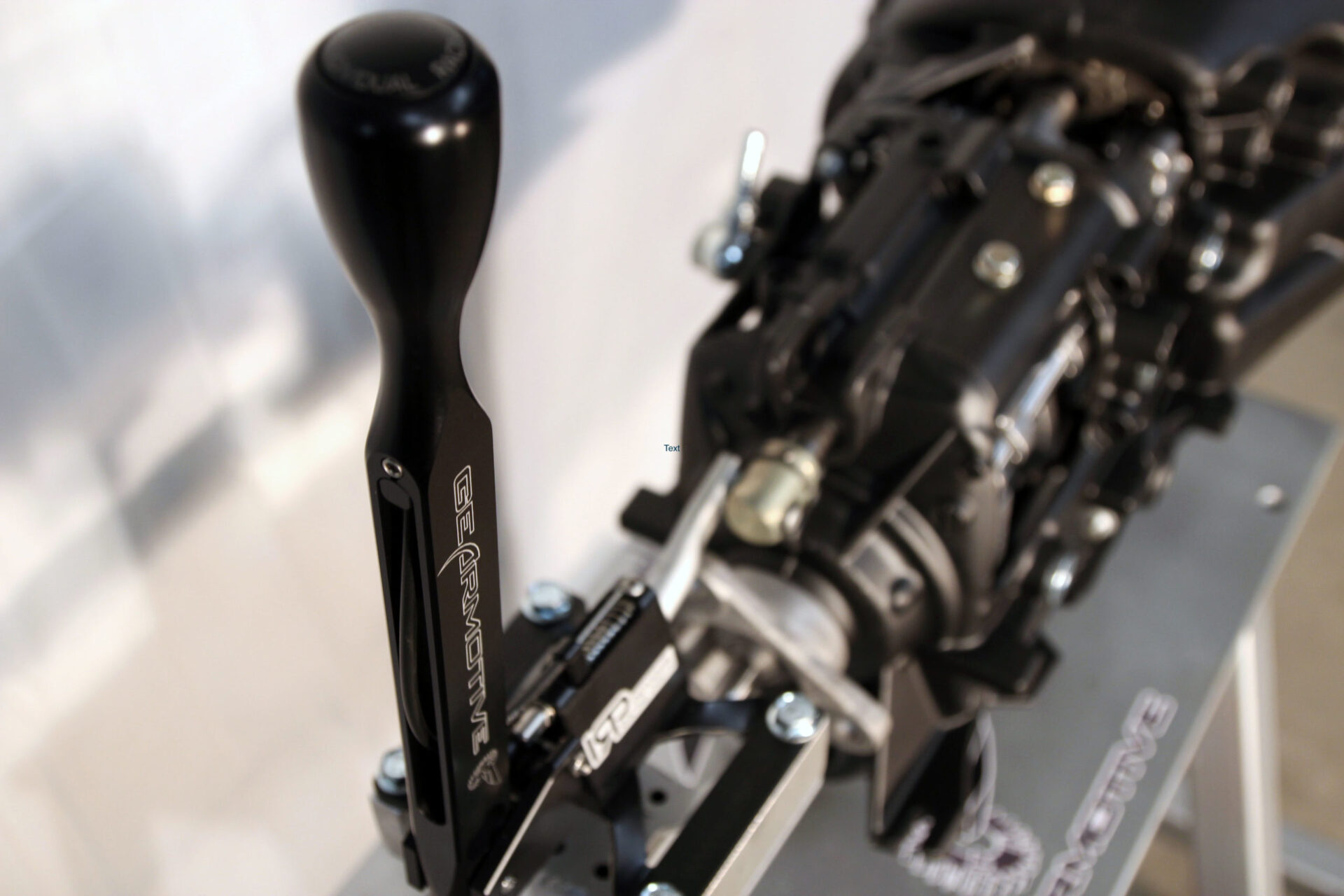

• Re-designed stronger shifter mechanism
• Patented design to improve power handling capabilities
• Extremely strong gearing, straight cut gears.
  Straight 1:1 5th gear ratio provides silent cruising and no power loss.
• Two Ratio options (see below)
• Ratio set 1 for Rally / Circuit, (Long 1st gear, smaller drop between gears):
  Gear ratios 1-5: 2.23, 1.71, 1.38, 1.16, 1.00
• Ratio set 2 for Drift / Drag / Rallycross (Longish 1st gear, bigger drop between gears):
  Gear ratios 1-5: 2.73, 1.83, 1.42, 1.16, 1.00
