Description

Radium Engineering’s 20-0761 Plumbing Kits include everything you need to plumb the fuel system between a Radium Fuel Pump Hanger and a Radium Port Injection Fuel Rail Kit.

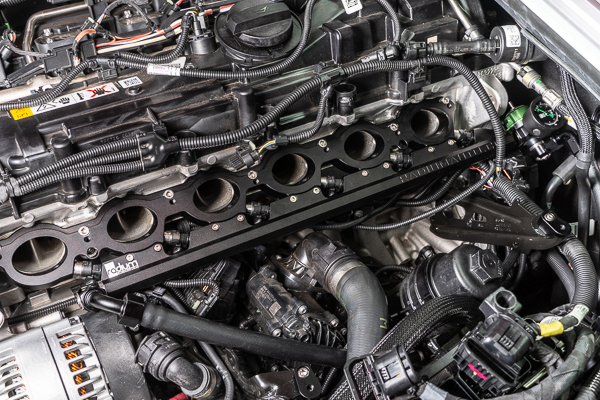

A -8AN 90 degree PuskLok hose end (shown below left) is included for connecting to an -8AN male port injection fuel rail fitting (not included).

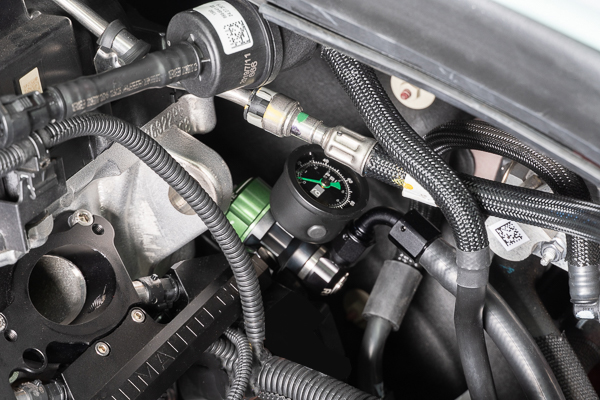

A -6AN 90 degree PuskLok hose end (below) is included for connecting to an -6AN male aftermarket FPR fitting (not included). A -6AN (3/8″) fuel hose runs to the fuel pump hanger return port.

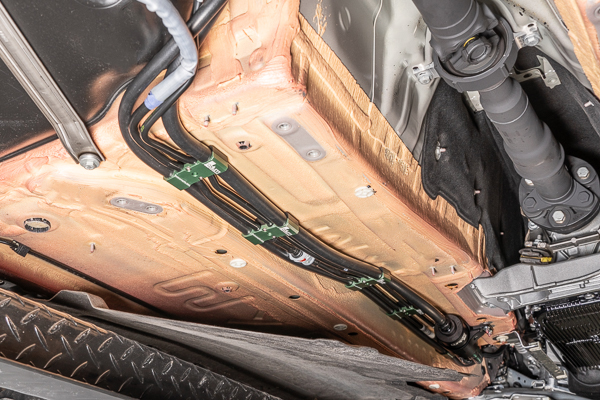

The feed and/or return hose can be easily modified for installation of an in-line flex fuel sensor. Furthermore, the hoses run though billet aluminum fuel line retainers.

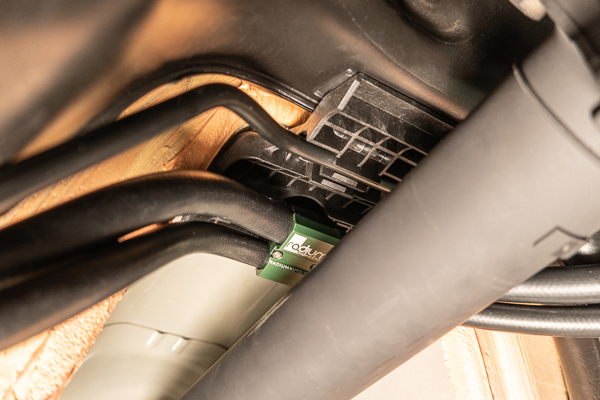

As shown below, a special retainer is provided to prevent the lines from contacting the driveshaft and exhaust when crossing over the tunnel.

An -8AN (1/2″) feed hose runs from the fuel pump hanger through the provided fuel filter using a specifically designed MK5 Supra bolt-on billet mount as shown below.

Depending on the kit selected (-03,-05), the fuel filter will be assembled with a choice of different elements. See product gallery for more filter element information.

INCLUDES
– Fuel filter (-03 Stainless or -05 Microglass)
– 8AN fuel filter adapter fittings
– Billet aluminium Supra/Z4 filter mount
– 8AN and 6AN PushLok hose ends
– 8AN fuel feed hose
– 6AN fuel return hose
– Fuel line retainers
– Stainless steel hardware

Instructions can be found here.



Additional information

Filter Material	Stainless Filter, Microglass Filter
