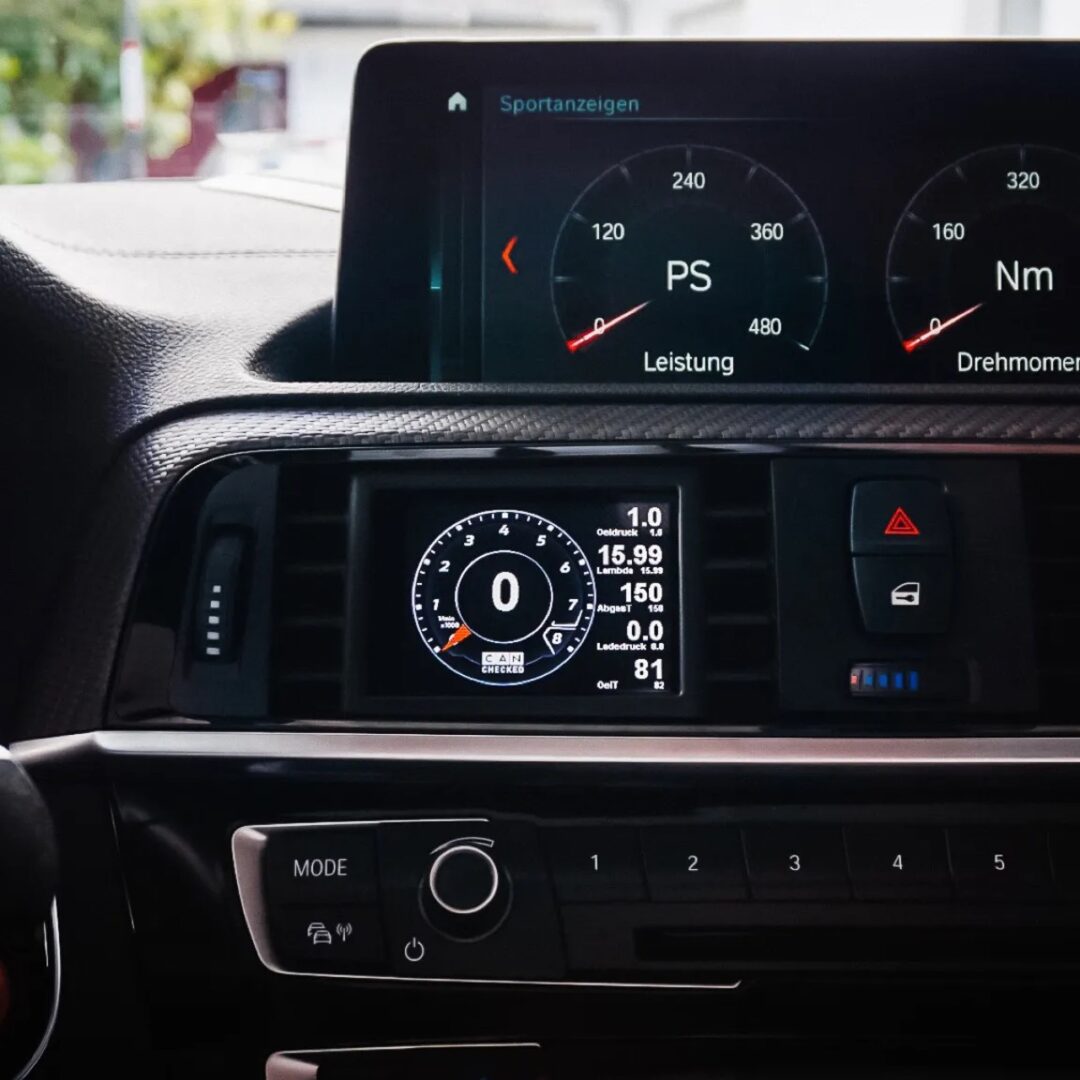

The new CANchecked GEN2 multifunction display for in-depth vehicle information and optional analogue sensors. Available for left and right hand drive vehicles.

CANchecked displays, measuring devices, software and sensors enable the visual representation of important engine data such as oil temperature, boost pressure, lambda, exhaust gas temperature etc. This can be done either via CAN bus (depending on the ECU values) or via additional analogue sensors.

The brand new second generation (GEN 2) of CANchecked displays offers:

• Improved graphics with better anti-aliasing
• Swipe instead of tap
• Widgets that can be adjusted more precisely
• New warning popup features

Features:

• 2.8 inch capacitive touch display with installation frame
• Control unit values ​​can be displayed (adapter cable included)
• 8GB SD memory card
• Up to 10 freely configurable display pages
• Connection via the junction box in the footwell (see installation instructions)
• Two digital and four analogue inputs for 0 – 5V sensors (e.g. oil pressure, fuel pressure, exhaust gas temperature (with adapter) and boost pressure)
• Integrated shift light
• Performance meter (e.g. measures the time from 100-200 km/h)
• Individual minimum and maximum warning values
• Popup Function when warning values ​​are exceeded or not reached
• Adjustable screen brightness (dims automatically with the vehicle displays)
• Engine diagnostic function
• Data logging, stored on internal SD card
• 4 analogue and 2 digital inputs enable the monitoring of sensors and devices from other manufacturers (future licenses under development will allow integration of Haldex all-wheel drive controls, water-methanol injection systems and ethanol fuel systems)
• Displays up to ten pages and has access to up to 64 sensors in your vehicle. Use the touchscreen to navigate between pages and choose which sensor you want to view.
• Engine water temperature, oil temperature, intake temperature, exhaust gas temperature and transmission temperature
• Boost pressure, target boost pressure, fuel pressure, high-pressure pump, exhaust back pressure, low pressure, front brake pressure, rear brake pressure and oil pressure all available to display

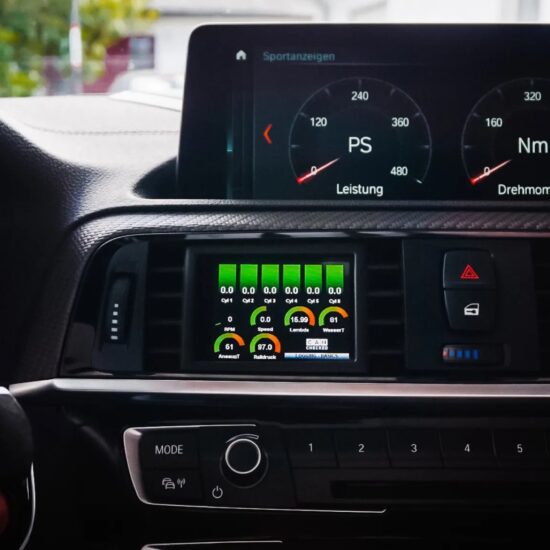

• Lambda value target/actual, injection correction, long-term lambda adjustment, total ignition angle and ignition angle per cylinder all available to display
• Engine speed, air mass (g/s), vehicle speed, throttle valve angle, battery voltage, gear, accelerator pedal position, longitudinal and lateral acceleration, steering angle, yaw angle, torque, power and boost pressure control valve activation all available to display

*Please note that not all values can be displayed with all vehicles.

Performance Monitor

• High-speed CAN integration gives you access to up to 64 vehicle sensors that you can view in real-time. The 2.8″ touchscreen allows you to swap out sensors on the fly and set up custom zones and alerts with the DSS software.

Cruise Control Button Integration

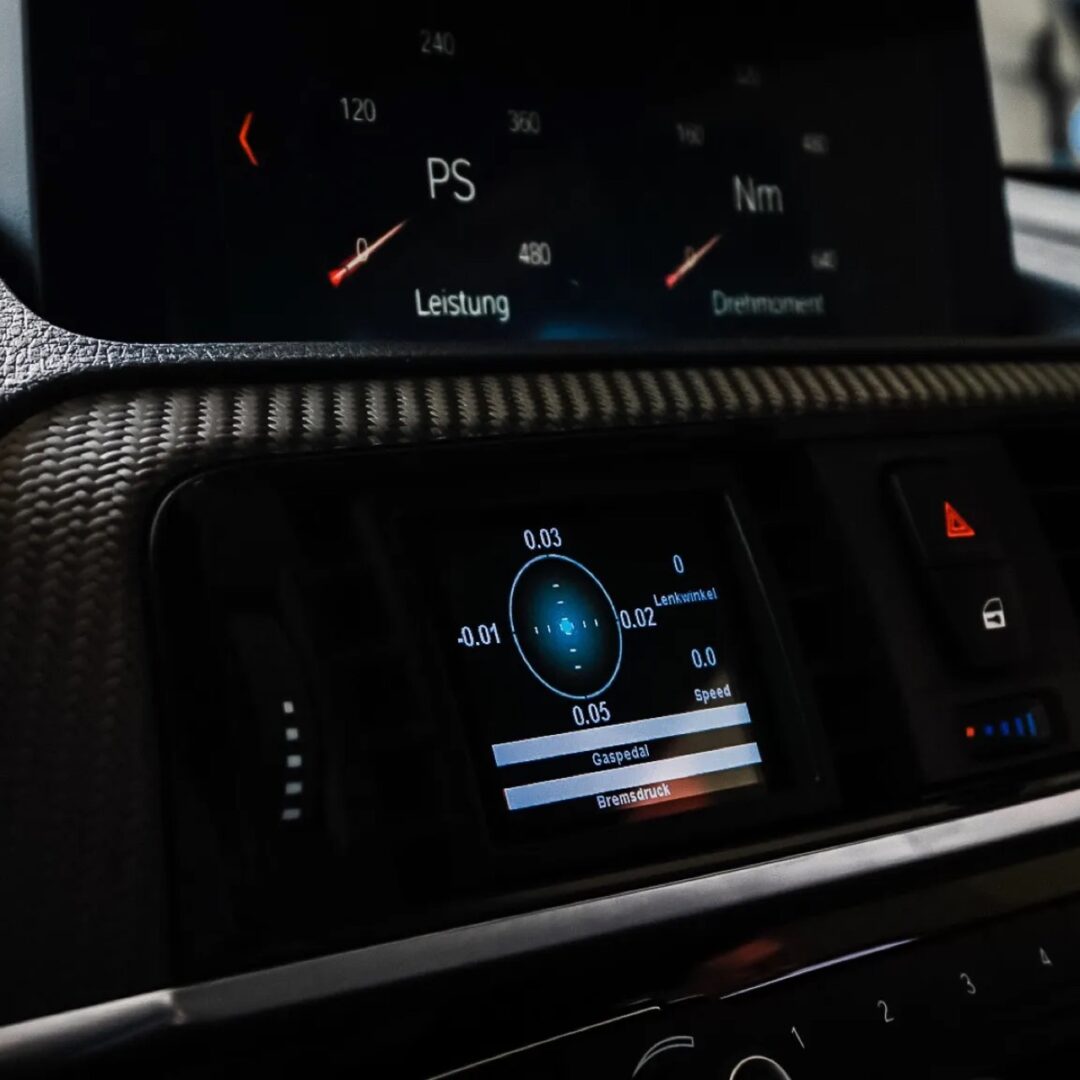

Driver Dynamics

Included With CANchecked Data Display GEN 2:

• vehicle-specific bracket / mounting frame for ventilation grilles
• CAN checked 2.8 inch display
• Vehicle-specific connection cable
• 8GB micro SD card
• Micro SD card adapter
• Quick Start Guide

If available, installation instructions are stored on the CANchecked website

FAQ

Does the display get hot in the ventilation shaft?
No. The screens are always protected from heat streaming through the vents.
Does the air vent also work with the display installed?
Yes.
Can I change the appearance of the display, units and scales?
Yes! With the various widget packs and the option of uploading your own graphics, you can completely customize your display.
Can I use analogue inputs?
Yes, there are 4 analogue inputs. So you can read pressures, temperatures, etc.

Note:  This display comes with a manufacturer-specific connection cable. The OBD socket thus remains free and an even faster query speed and even more values ​​can be offered compared to OBD solutions. The CANchecked displays work for a large number of vehicles and engines with OBD 2. If your engine type does not work or does not display correct values, then your vehicle protocol is not yet implemented in the display. If this is the case, CANchecked can add the correct .tri file for your engine/car model. Contact us for more information.

Right hand drive version. Left hand drive available by request. Please advise vehicle registration or VIN upon purchase.
