Name: CSF B58 Charge Air Cooler Manifold (Gen 1 B58)
SKU: 56128
Price: 3510 GBP
Availability: BackOrder

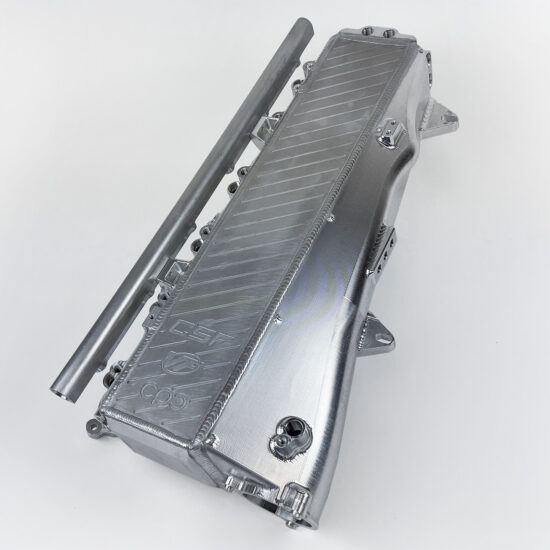

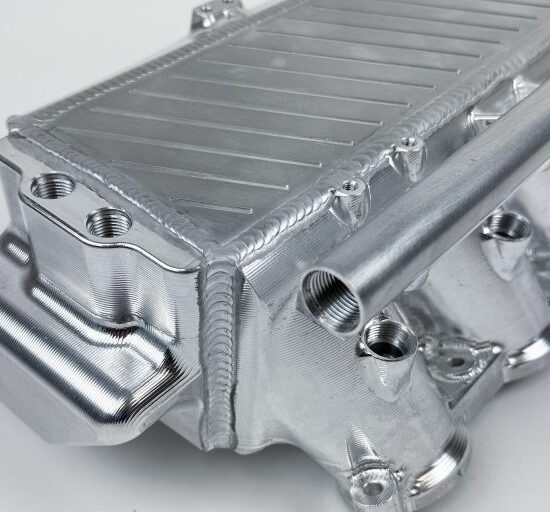

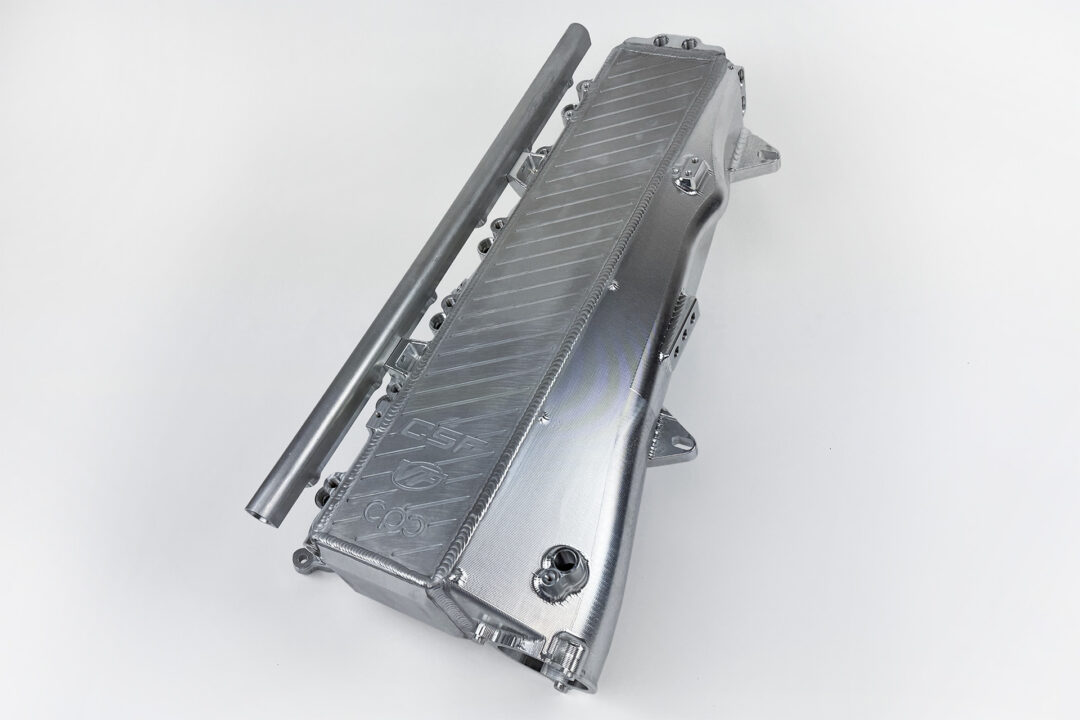

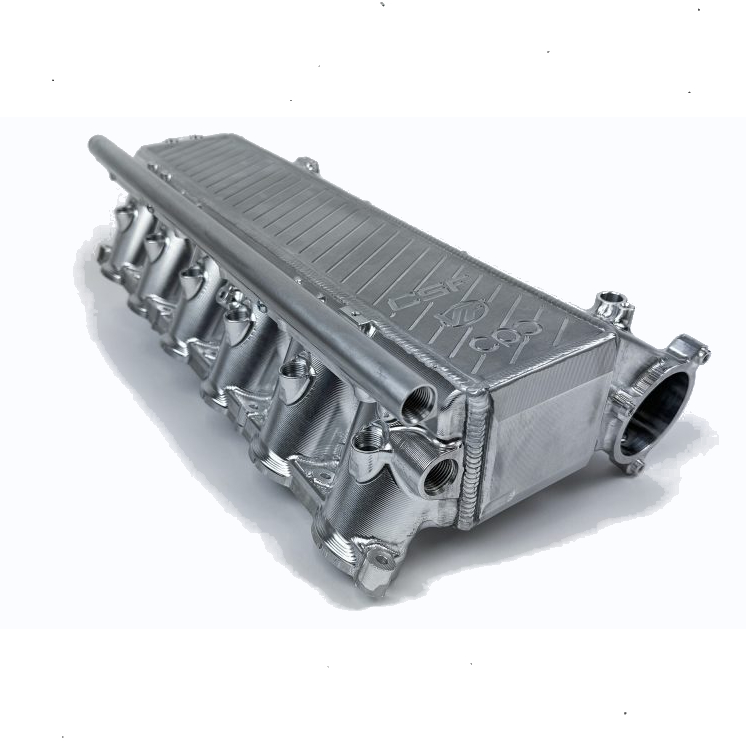

CSF B58 Charge Air Cooler Manifold (Gen 1 B58)

0 out of 5

£4,212.00

With the Gen 1 B58 powered BMWs getting a little bit older, more tuners and enthusiasts are picking them for competition. This has greatly increased the demand for more motorsports grade products for more power and reliability. Many vehicles are pushing well over 600 horsepower and needing additional fuel and cooling to reach their power goals. The CSF “Super Manifold” is the all in one solution for proven performance and the largest feature set in the industry.

The OEM charge-air-cooler manifold for the B58 engine is adequate in cars with little or no modifications. However, it starts to show its weaknesses in cars that have bolt-on modifications, turbo upgrades, increased fuelling (such as port injection) and performance tuning. In addition, the OEM intercooler system has been known to suffer from heat soak in demanding racing conditions such as time attack, endurance racing, drag racing, drifting, and even spirited driving on the street. This can cause the car to pull timing out of the engine due to high intake air temperatures (IATs), sending it into limp mode once temperatures reach a certain threshold. In high boost applications, the OEM manifold is also prone to failing at the crimp on gasket joining of the core and tanks.

Because the CSF #8300 is the same overall design as the CSF #8200 with some small design adjustments to fit the Gen 1 B58, there is no question that it will perform. The Gen 2 B58 “Super Manifold” has been real world tested and proven in some of the most extreme motorsport competitions around the world. It has stood up to the rigors of the Pikes Peak International Hill Climb, Global Time Attack competitions, and Texas 2K drag racing, just to name a few. In addition, it has also been dyno proven on many vehicles pushing over 1000 whp. While there are countless features and details to show just how superior the CSF Manifold is, real world examples speak louder than words.

Features

Utilizes a High Performance, Motorsports-Grade Bar/Plate Air-to-Water Intercooler Core
- Double the Capacity of the OEM Core (12 Rows of Water Cooling vs. OEM 6 Rows)
Significantly Lower Pressure Drop Across the Core Compared to OEM
Designed in SolidWorks Using Computational Fluid Dynamics (CFD)
- Integrated Air Divider in Inlet Tank Evenly Distributes Airflow Throughout the Core
Improved slotted mounting holes on throttle body side for easier installation.
Easy Access to Spin-Off Oil Filter for Quick Oil Changes – No Need to Uninstall Manifold Every Oil Change
- Counter Balanced Design for Optimized Airflow

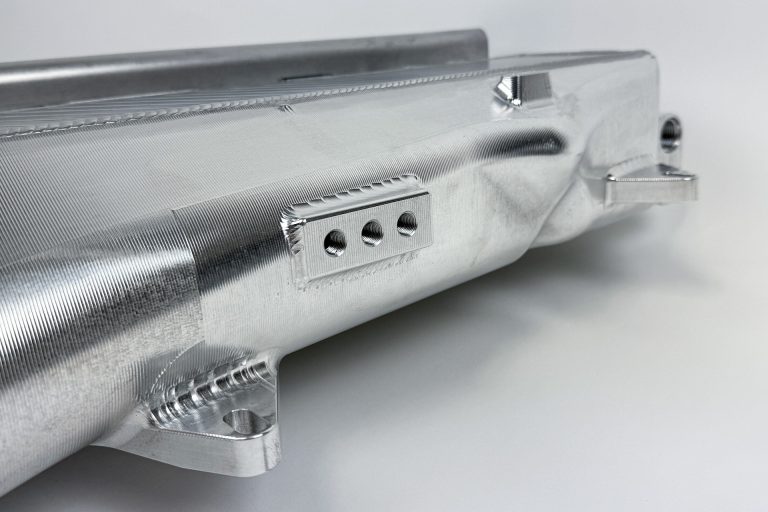

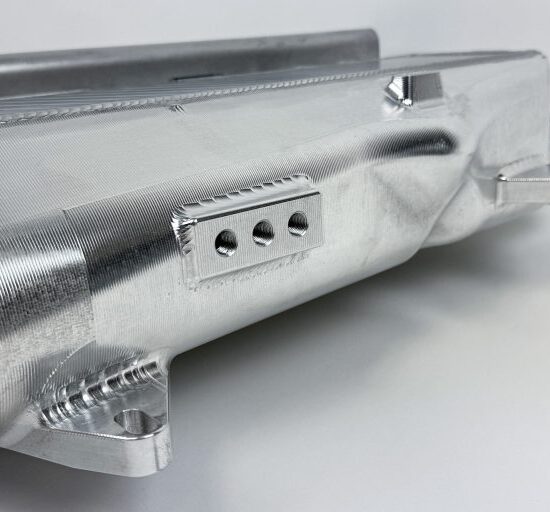

Integrated Sensor Pad with Three 1/8″ NPT Ports to Measure Additional Parameters

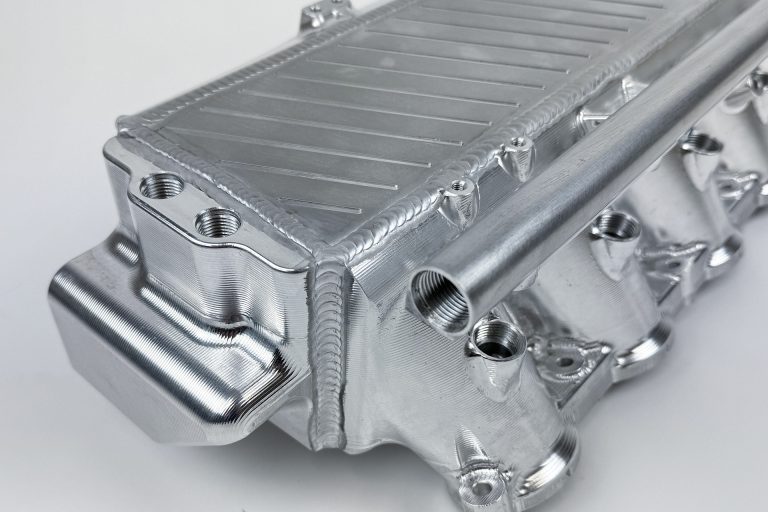

Included Optional Fuel Rail for Top Feed Port Injection

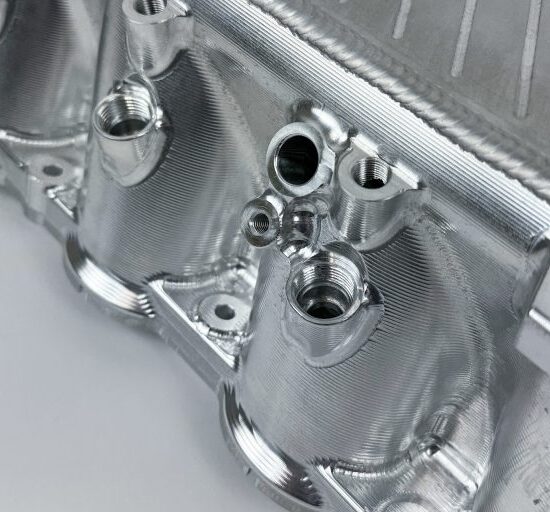

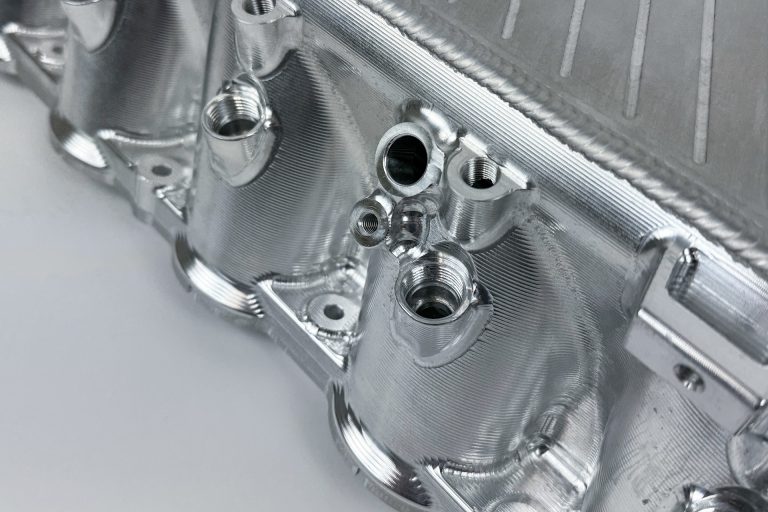

- Individual Port Injection Bungs on Each Cylinder Runner (Comes Pre-Plugged)
Individual 1/8″ NPT Ports on the Top of Each Cylinder Runner for Nitrous or Meth Injection
- Allows for Even Spray Distribution and Control for Maximum Performance and Engine Protection
Individual 1/8″ NPT Breather Ports for Both Inlet/Outlet Water Connections on Back of Manifold for Easy Air-Bleeding of the System
Included KIYLEX Thermal Rejection Manifold Spacer*
- Made from KIYLEX® – A patented revolutionary high-performance final stage polymer
- Acts as a thermal barrier that dissipates heat between the cylinder head and intake manifold
- Proven to lower intake manifold temperatures by up to 15%
- Lowers Intake Air Temps (IATs)
Plug-and-Play design, Requiring No Modifications to Install
- Includes Hardware and Installation Kit with Picture Diagrams Containing 32 Different Parts for Easy Installation
Comes Finished in Raw Billet Aluminum – Made by World-Leading Automotive Machinist Custom Plenum Creations in Australia
- Optional Powder-Coating and Thermal Rejection Finishes Available – CSF #8300C / #8300B
