Workshop Journal: Sam’s F87 M2 Intercooler Upgrade

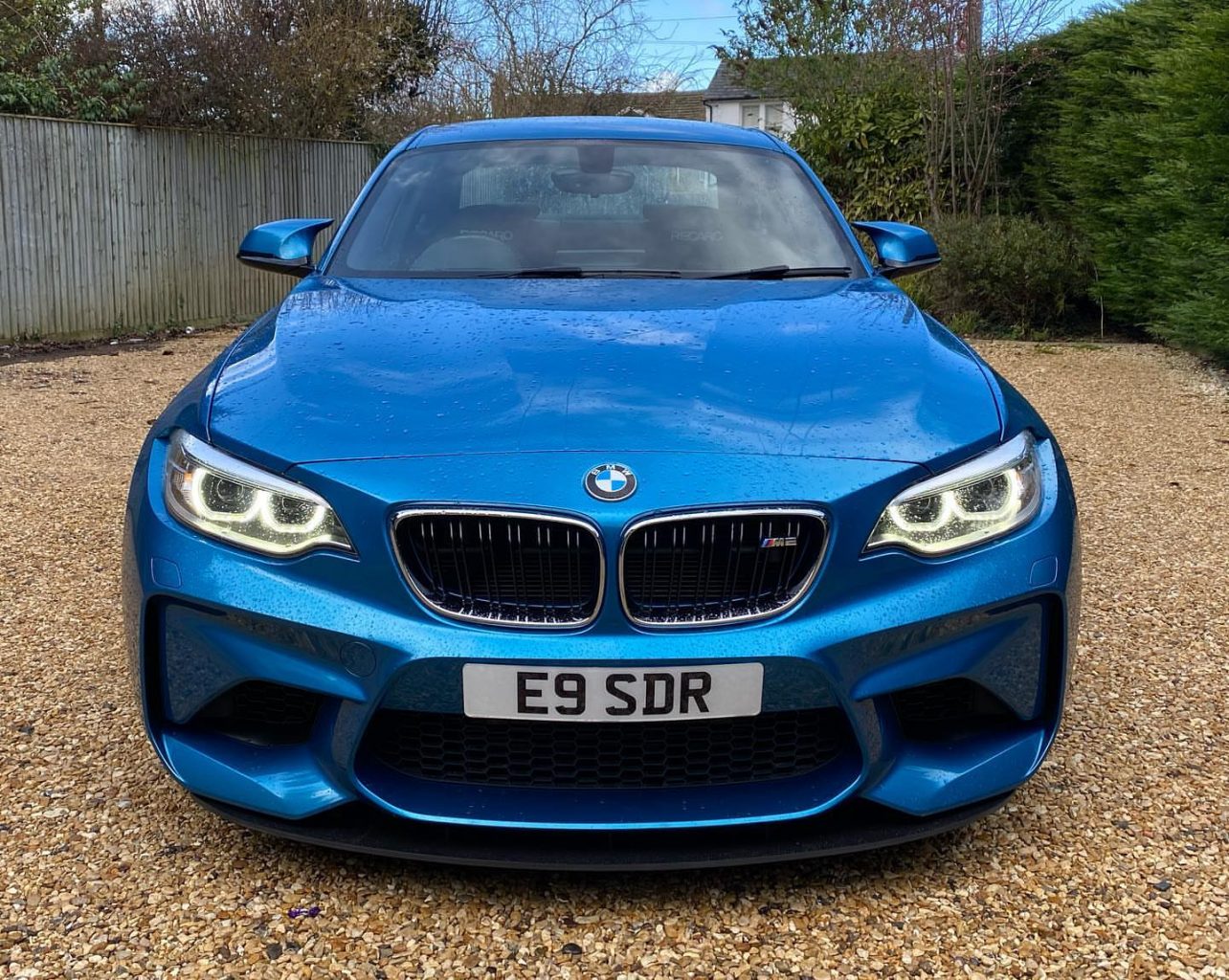

Sam Ratcliffe is one of our oldest customers, having assisted a great deal with parts development and testing with his E46 M3 track car. However, that car was sold a couple of years ago and to replace it, Sam purchased an F87 M2.

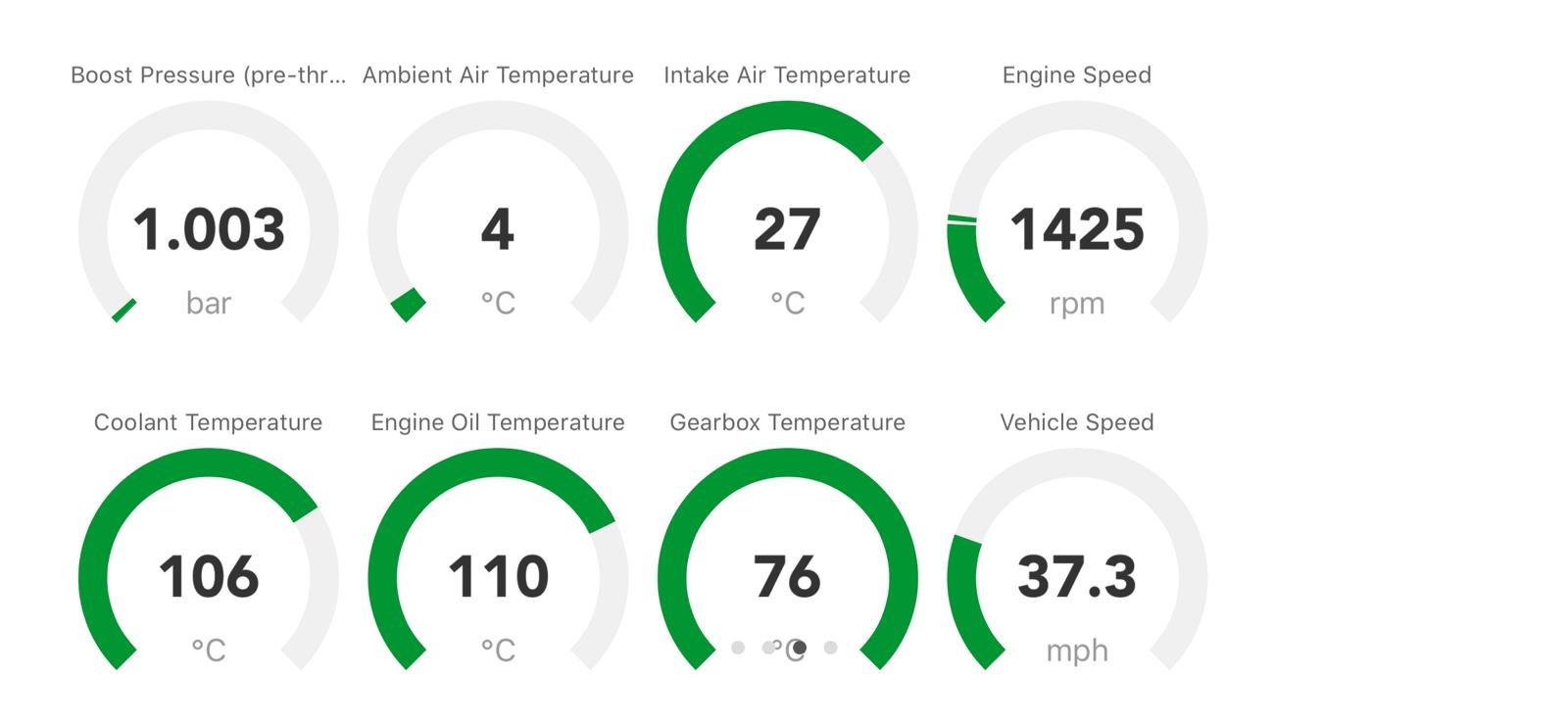

Though not destined to be a highly modified track car like the E46 M3 before it, Sam has used it a for a few track days and intends to continue doing so, without compromising the road-friendly characteristics. Intake air temps has been the biggest issue to date and so Sam chose to work with us once again to develop a fix, in the form of a far greater capacity intercooler. Sam logged data on the 2+ hour drive down to us as a baseline.

Workshop Journal: Sam's F87 M2 Intercooler Upgrade

Work then began on the M2. Our intercooler makes use of a large void ahead of the standard intercooler, while also using the space the original occupies. This means a capacity of nearly double that of the current intercooler, with a greater frontal area for maximum airflow. It also attaches using all of the original intercooler hoses and brackets.

Workshop Journal: Sam's F87 M2 Intercooler Upgrade

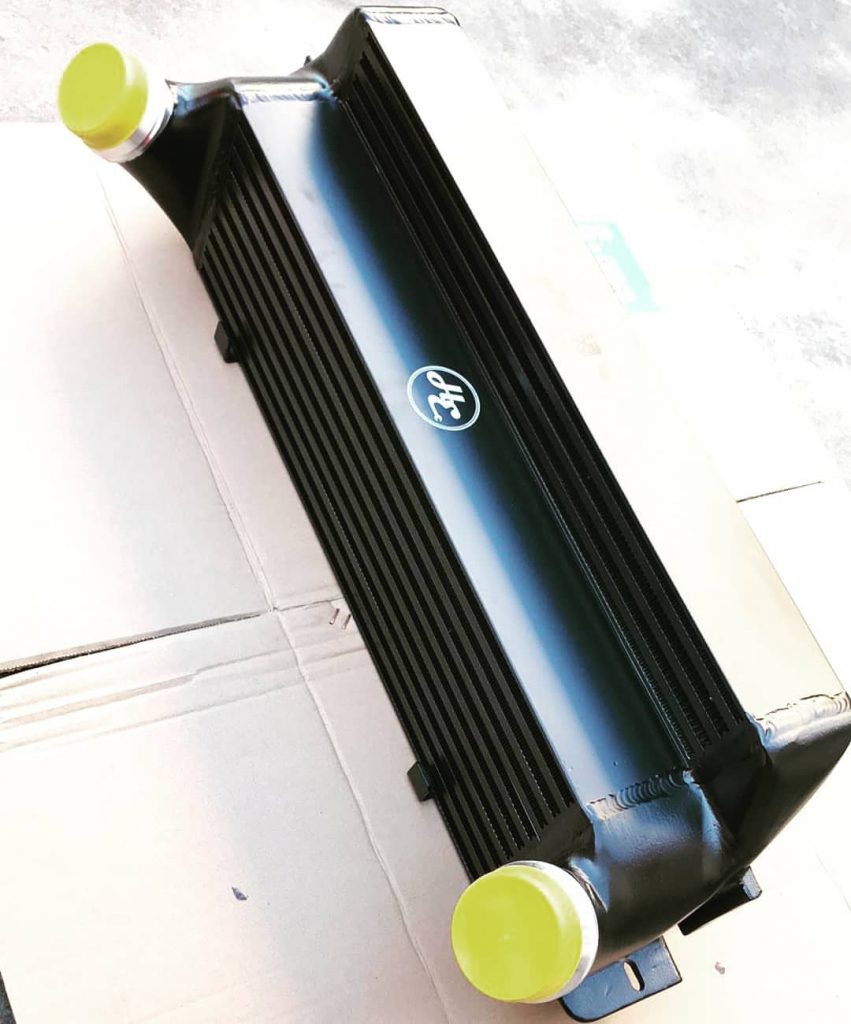

The satin black powdercoat also gives a very subtle appearance – exactly what Sam had requested.

Workshop Journal: Sam's F87 M2 Intercooler Upgrade

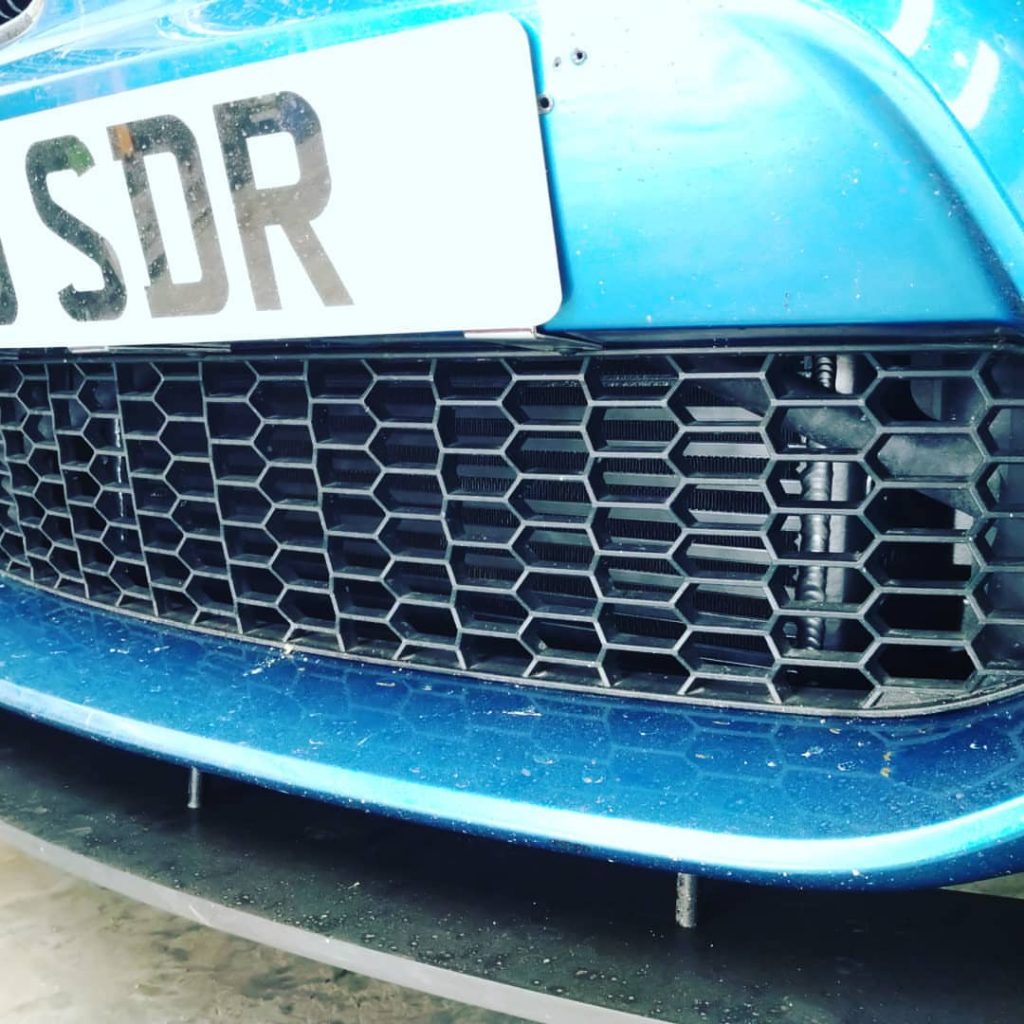

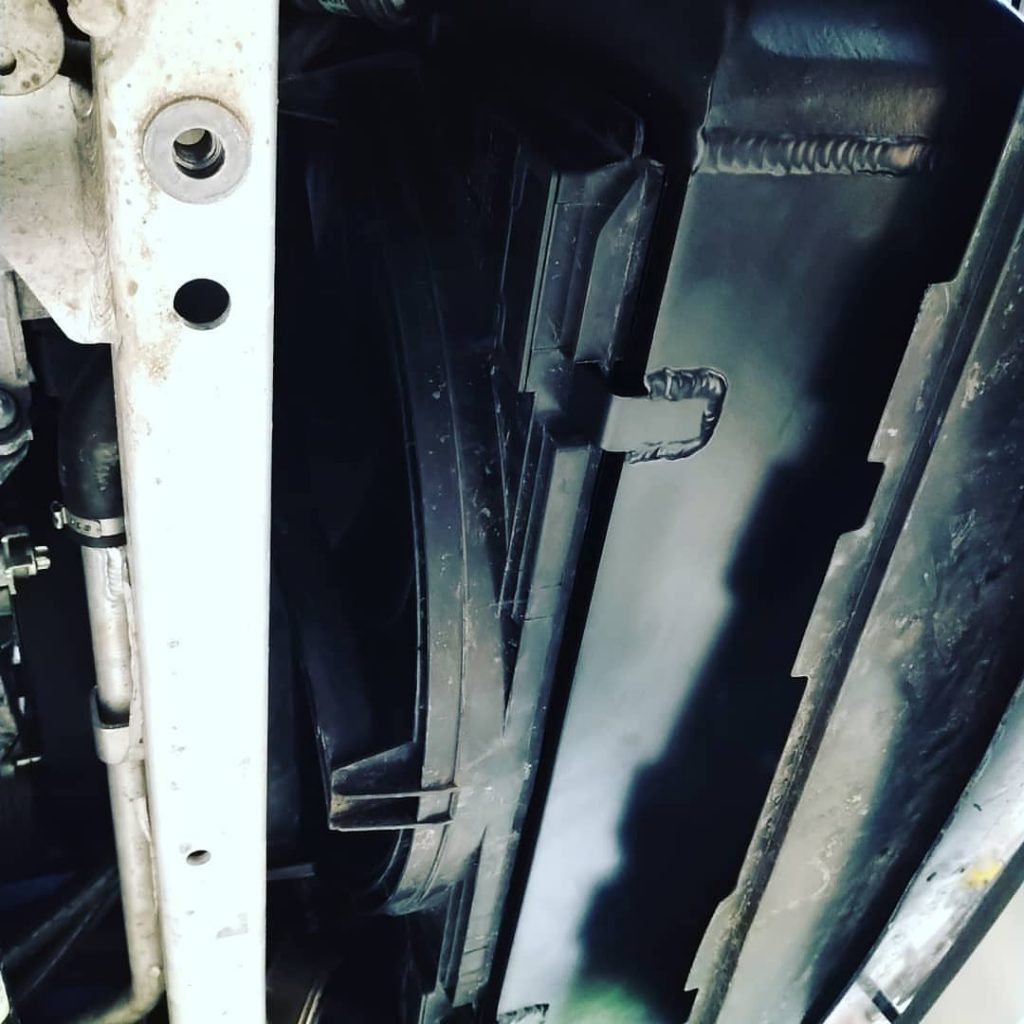

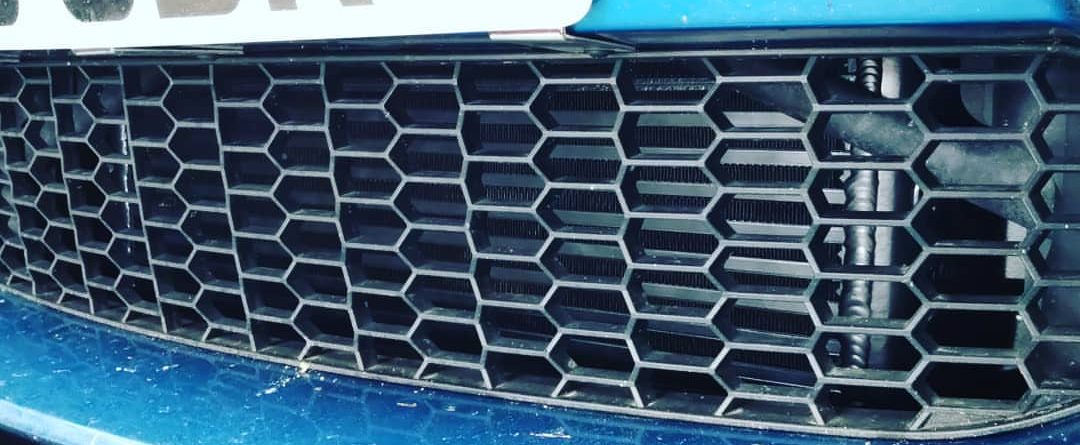

The factory fan shroud attaches nicely – it’s a perfect fit. From the front of the car it’s actually less visible than the factory intercooler too!

Workshop Journal: Sam's F87 M2 Intercooler Upgrade

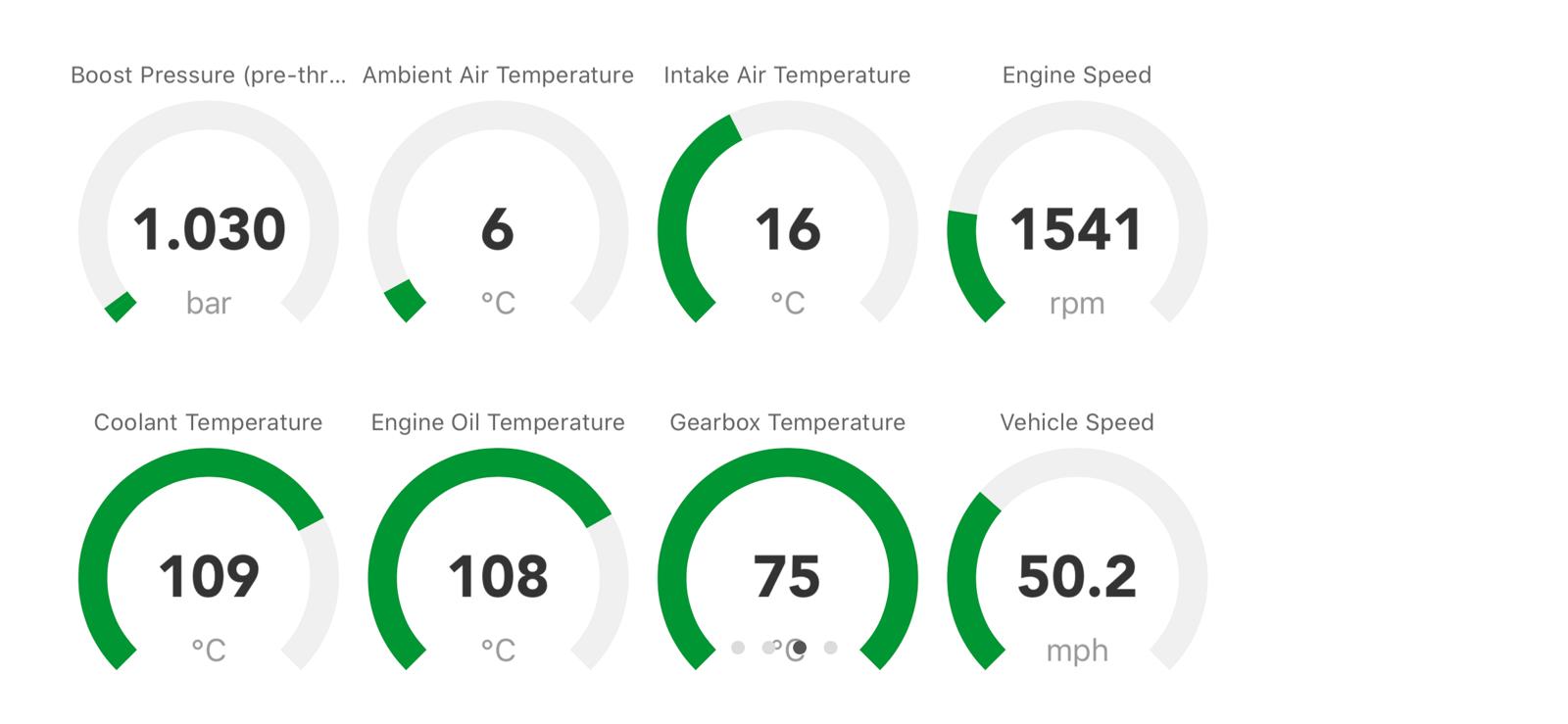

On Sam’s return journey home he again ran logging to see what difference the intercooler made to charge temperatures – with immediate and impressive results. Despite ambient temperatures being 2 degrees higher, the M2 recorded an 11 degree reduction in temps – a 13 degree total drop. These intercoolers will soon be for sale in the Hack Engineering shop.

Workshop Journal: Sam's F87 M2 Intercooler Upgrade
